High Technology Brake Pads Making Machine with 4.00-5.00MN Nominal Molding Power

Name: High Technology Brake Pads Making Machine with 400500MN Nominal Molding Power
Brand: HUICAI
Price: 17 USD

China High Technology Brake Pads Making Machine with 4.00-5.00MN Nominal Molding Power wholesale

Place of Origin : Shandong, China

Condition : New, New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Brand Name : HUICAI

Machine Type : Plate Vulcanizing Press

Voltage : 380V/220V

Dimension(L*W*H) : 1500*1500*1

Weight : 400

Warranty : One Year

Key Selling Points : Accurate temperature control

Showroom Location : United States

Applicable Industries : Manufacturing Plant

Type : XLB-D(Y)1500*1500*1

Nominal molding power(MN) : 4.00-5.00

Working layer number : 1

Piston stroke(mm) : 250-500

Main motor power(KW) : 3.0

Plate clearance(mm) : 125-500

Calefaction manner : Steam ecectricity

Color : According to customer's request

Application : Produce

Marketing Type : Ordinary Product

Packaging Details : wooden casesAccording to the needs of clients

Port : Qingdao

Supply Ability : 100 Set/Sets per Month good quality rubber vulcanizier

Price : $17,800.00 - $20,000.00/sets

MOQ : 1

Contact Now

Product Description

Features

1. Compact structure, beautiful modelling and strong clamp force .
2. Per working position can be heated to 180 degree celsius(adjustable),the lower template can control temperature in room temperature condition to form an effective temperature difference.
3. Its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc
4. Pass CE and ISO9001 Standard.

*Technical Parameter*
Type	XLB-D(Y)100010001	XLB-D(Y)120012001	XLB-D(Y)150015001
Nominal molding power	1.60-2.00MN	3.15MN	4.00-5.00MN
Working layer number	1	1	1
Piston stroke	250-500mm	250-500mm	250-500mm
Main motor power	3.0kW	3.0kW	3.0kW
Plate clearance	125-500mm	125-500mm	125-500mm
Heating method	Steam,ecectricity	Steam,ecectricity	Steam,ecectricity
Configuration	Frame	Frame	Frame
Electric pipr heating power	12kW	15.6kW	27kW

Company Informations

High Technology Brake Pads Making Machine with 4.00-5.00MN Nominal Molding Power

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5)Our company owned 2 process workershop,2 assembly workershop and total 40,000 squre meters.
(6)Our registered fund is USD 30,0000.00.

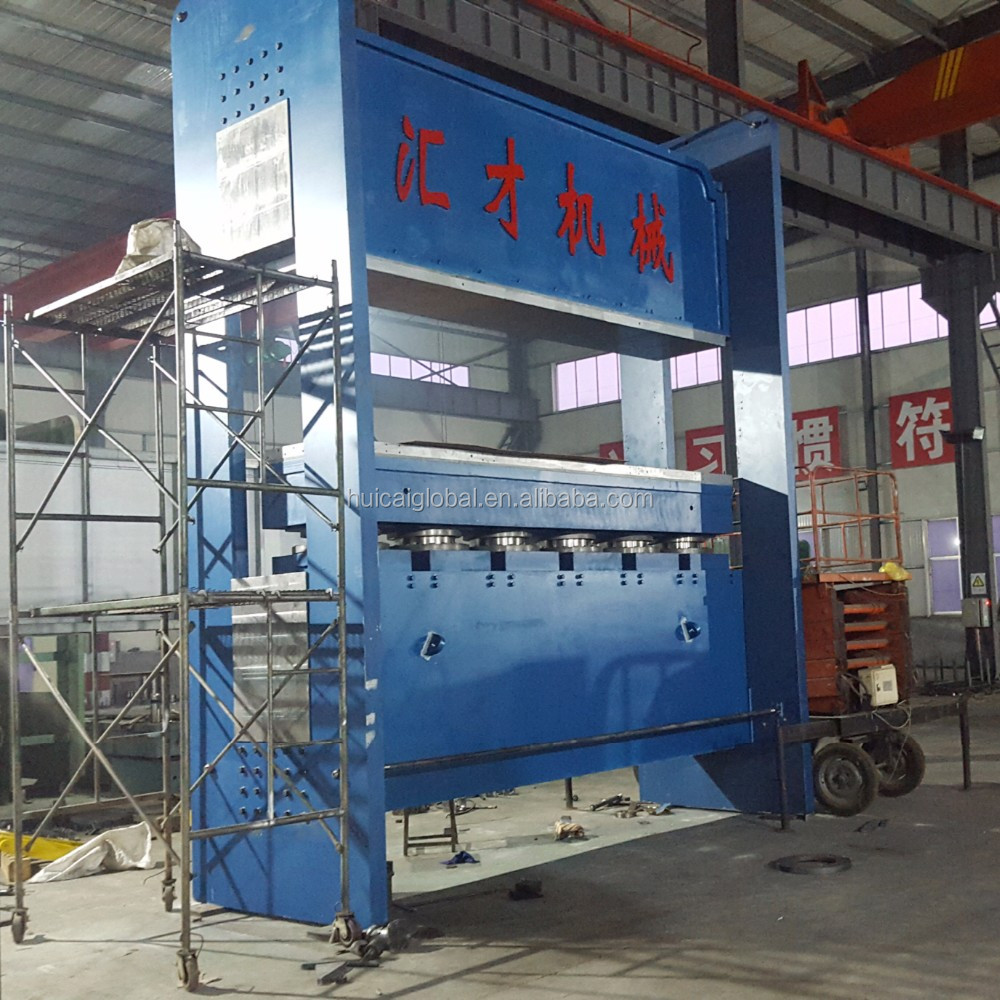

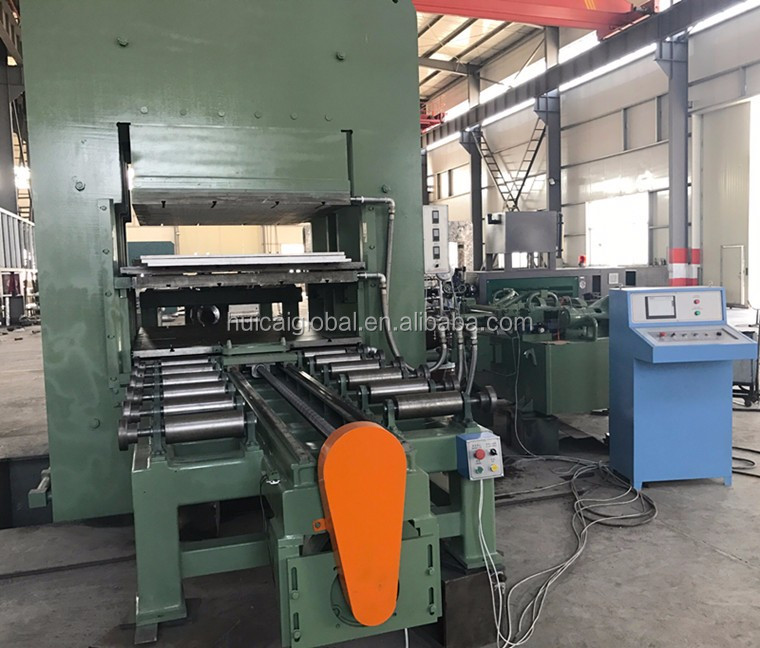

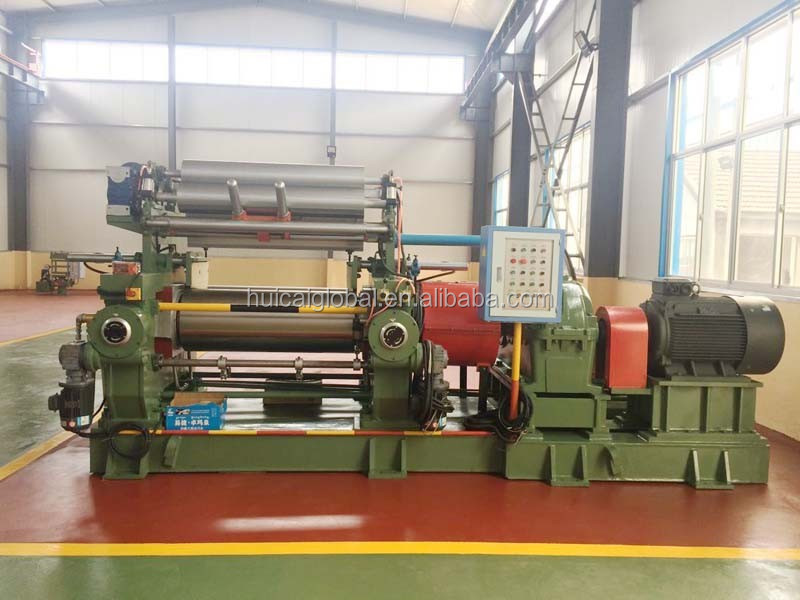

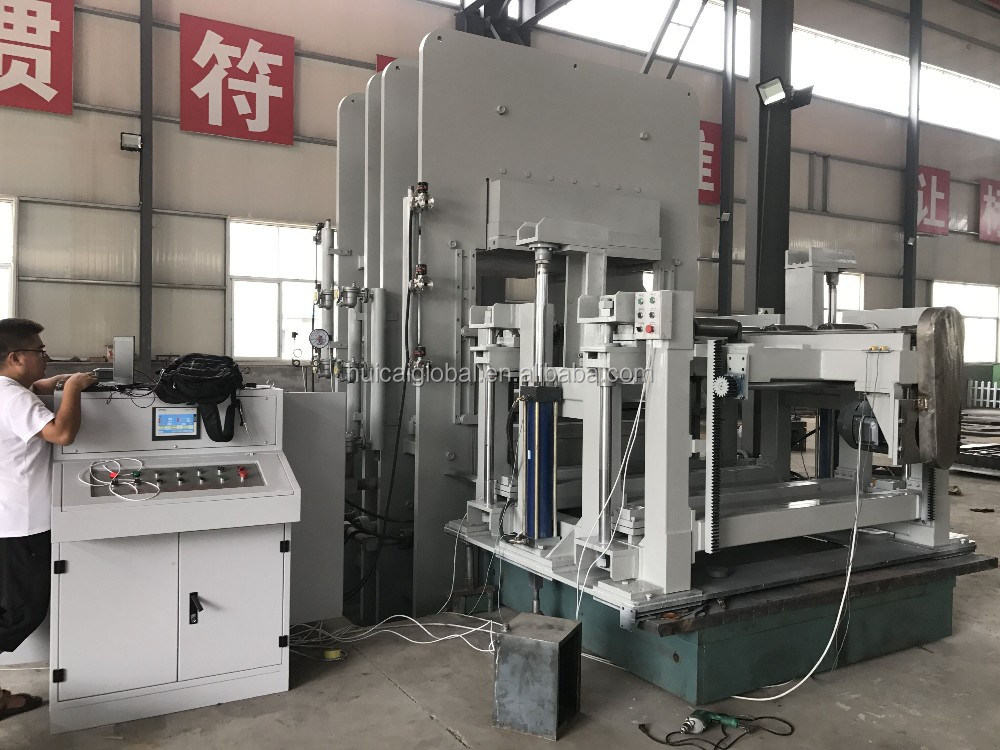

Machine Show

cheap and fine rubber vulcanizing press rubber mat manufacturing machine

Rubber products making machine

We can according to all your requirements , design your suitable machine

♥ If you are interested in our products, please contact me ♥

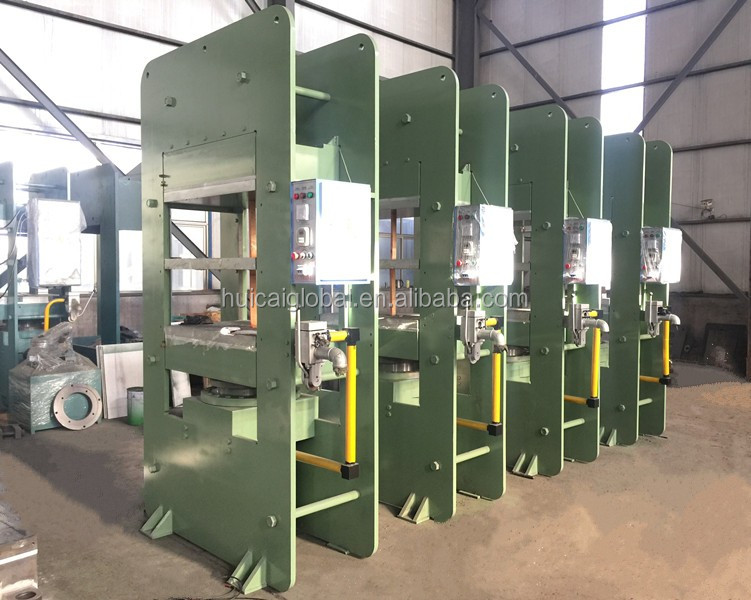

Workshop Show

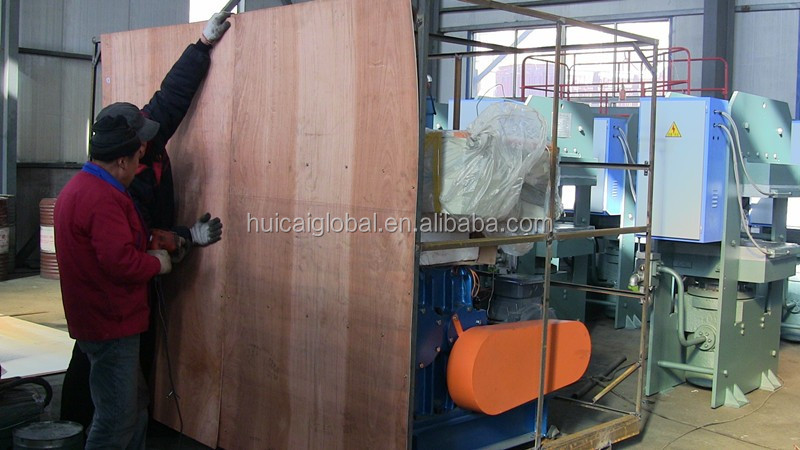

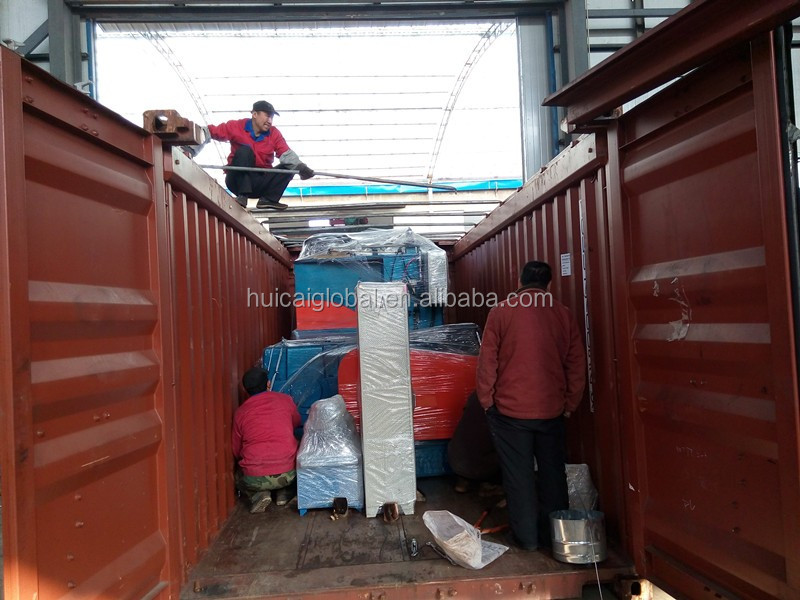

Packing & Delivery
