Rubber tile making machine/Rubber floor brick making machine
Features of Rubber tile making machine
1. Rubber tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.
2. This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.
3.The working layer can be designed as customer's request, 2, 4, 6, etc
4. We can customize the moulds according to your special requirments.
5. We have got CE, ISO, SGS.

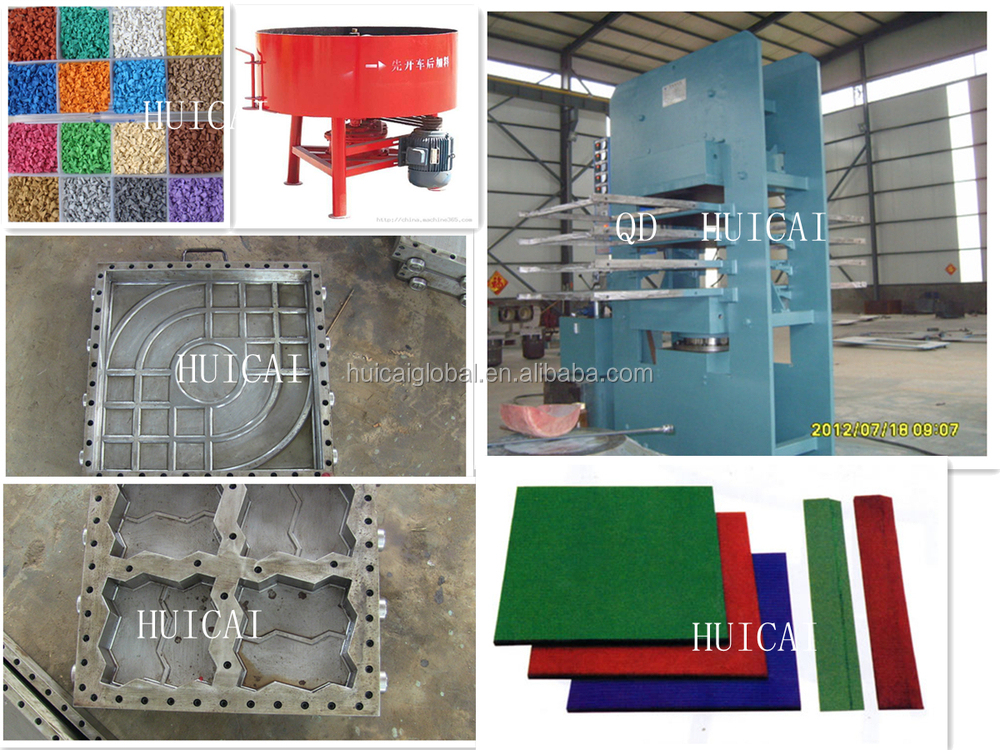

Molds
Mixer
Flow chart of rubber tile making machine
Mixing: Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive, then begin stiring. It will take 4-6 mins to be done.
Weighing: weigh the stirred rubber powder according to the floor tiles thickness you want to make.
Paving and Pressing: pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom , can be with some coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.

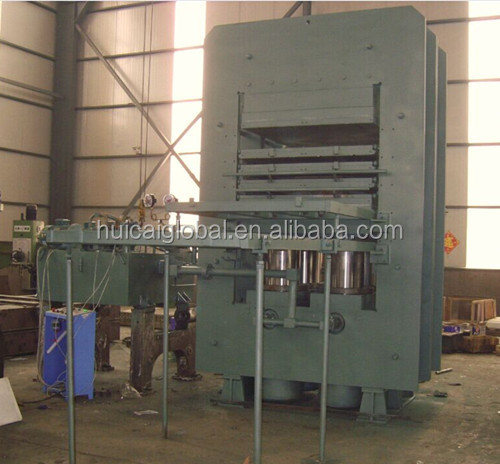

Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3-8 mins to make the tiles, time difference based on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.
Inspecting: Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.
Our Services
Our Services:
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
2 year quality guarantee, Life-long Maintenance, Eneineer is avaliable to go overseas install and train your workers.
Welcome to visit our factory!
